So, to find out, Minnesota erected test portions on a low-usage route in 2008. We got an early glimpse with a pervious concrete driveway completed in 2005.In autumn 2008, the team extended the work by installing three test sections on MnROAD’s Low Volume Road, a two lane research loop about 2.5 miles (about 4 km) long. The design and early performance of the sections are documented in MnDOT’s 2011 final report. A five-axle semi-trailer weighing 80,000 pounds (about 36 tonnes) repeatedly travels along the inner lane, while the outer lane remains exposed to the weather. During the first full year, friction readings taken with a smooth tyre ranged from 45 to 55, above the threshold of 25 that the report identified for corrective action. Noise readings on the pervious concrete cells ranged from 97 to 100.5 decibels, compared with about 103.5 decibels on a neighbouring concrete cell with transverse tining. Reported roughness values ranged from 3.10 to 6.40 metres per kilometre, depending on the season, wheel path and measurement method.

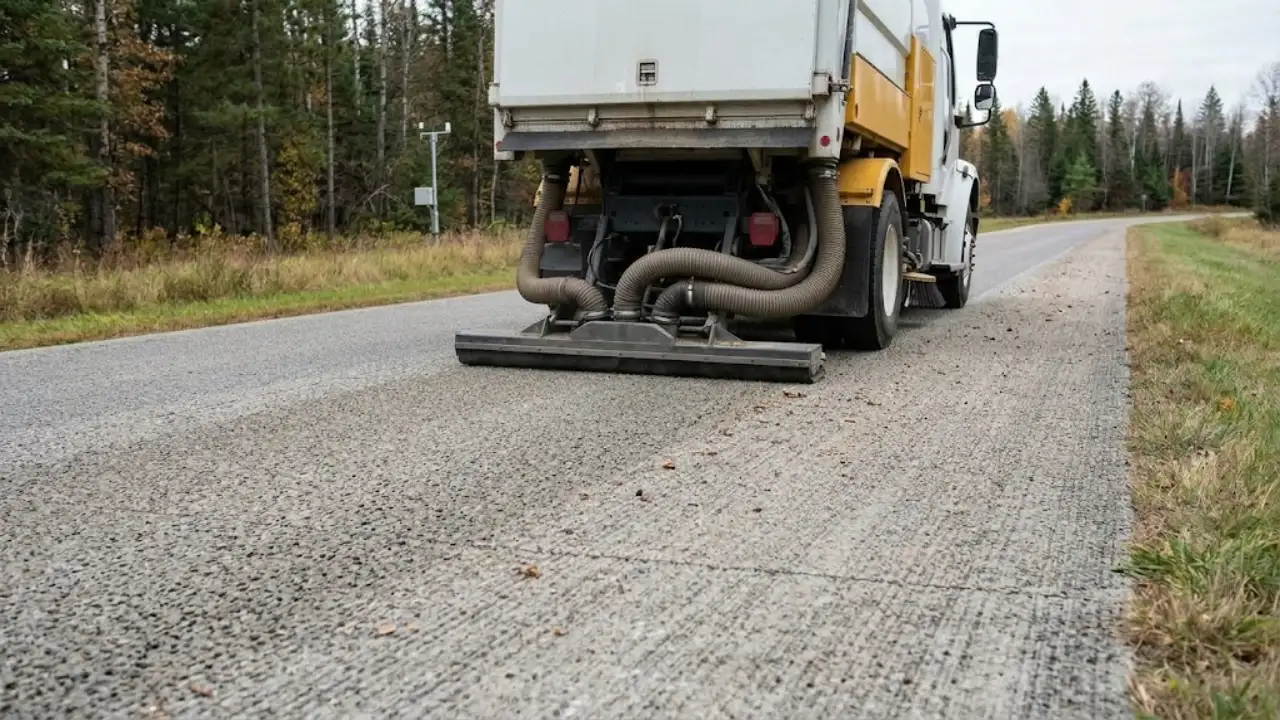

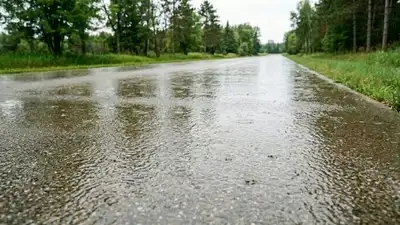

Because standard concrete and asphalt protect the ground, water flows into storm drains that frequently empty into rivers untreated after sliding off the surface and picking up oil and grit along the way. Because it is filled with many tiny, linked spaces, rainfall flows directly through the surface and soaks into the soil below. When rain falls on a typical road or parking lot, it has relatively few options for where to go. To address that, pervious concrete was created. The idea made sense in theory, but engineers in cold climates had concerns. A surface full of holes may break up if water freezes within, and salt, snow ploughs and passing traffic could permanently block up the pores. Monitoring at MnROAD found that ride quality remained adequate for roads with light traffic over the years. MnDOT’s research summary reports that regular vacuum maintenance, more than twice a year, helped maintain the pavement’s benefits, including drainage. The results are most relevant to village lanes, driveways and residential streets that carry light traffic in snowy climates. The MnROAD tests found that ride quality remained suitable for roads with light traffic, while regular maintenance helped protect drainage. To appreciate why the trial mattered, it helps to understand what officials were seeking to learn. Pervious pavements had promise for crowded metropolitan areas where enormous quantities of contaminated runoff end up in drains, but no one knew how they would handle Minnesota’s harsh environment, how much maintenance they would require or what their effect would be on groundwater quality. The loop functions like a laboratory. Crews plough and salt the route much like they would any low-volume road. Thermocouples and moisture sensors embedded in the cells track the frequency of ground freeze and thaw, the movement of temperatures through the layers and the effectiveness of water drainage. Researchers repeatedly measured ride quality, noise, friction, surface roughness, surface condition and permeability across seasons. The test results suggested that the porous surface absorbed more noise from the interaction between tyres and the road. Ride quality varied during the testing period. The report also noted that hand finishing during installation affected surface smoothness. Even so, MnDOT’s longer-term analysis found that the test cells retained ride quality suitable for roads with light traffic. The Minnesota trial does not establish that pervious concrete will work equally well on every road. It indicates that the material can be suitable for roads carrying light traffic in cold climates when installation is carefully controlled and drainage is maintained. The results also show why construction quality matters: differences in the distribution of pores and in surface smoothness affected the test cells. Anyone considering the material should account for local weather, traffic levels and the cost of regular vacuum maintenance.
